Fluke multimeters

Fluke 113 Digitale multimeter True RMS

Fluke
Fluke113 12112017
0095969436298
kg
    Levertijd:prijs en levertijd op aanvraag | sales@brigatti.nl

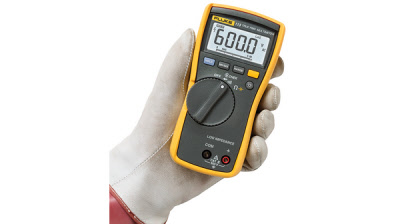

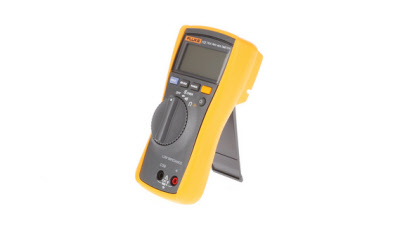

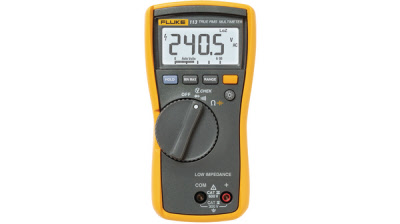

  • The Fluke 113 Digital Multimeter
  • Compact design for ergonomic one-handed operation
  • The Fluke 113 is for basic electrical tests and
  • repairing most electrical problems. Features
  • include Fluke’s VCHEK™, added measurement
  • functions, backlight and conformance to
  • the latest safety standards.
  • VCHEK™ LoZ low impedance measurement function to simultaneously test for voltage or continuity
  • True-rms for accurate ac measurements on non-linear loads
  • A large backlit display allows for easy visibility in low-lit areas
  • Record signal fluctuations using the Min/Max function
  • Diode test for testing general-purpose germanium, silicon, and power diodes
  • Integral holster with probe holders for easy storage
  • Auto and Manual ranging for added user functionality
  • Meets Measurement Category CAT III 600 V and Category IV 300 V standards for a higher level of safety
  • The optional TPAK magnetic hanger allows the user hands-free flexibility
  • Meettype: TRMS AC
  • Scherm: 6000 cijfers
  • Bandwidth: VAC 1 kHz
  • Safety to: EN61010 CAT III 600 V CAT IV 300 V
  • VAC max.: 600 VAC
  • VAC: resolution 1000 µV
  • VDC max. 600 VDC
  • VDC resolution: 1000 µV
  • Ohm max.: 60 kOhm
  • Ohm resolution 0.1 Ohm
  • F max: 10 mF
  • F resolution: 1 nF
  • Meetfunctie: Continuity tester \Hold Min./max. value
  • Instrumentfuncties: Analoog bargraph backlight Removable holster
  • Voeding: 1 x 6LR61/9V
  • Garantie: 3 jaren
  • Afmetingen L x B x H: 167 x 84 x 46 mm
  • Gewicht: 550 g
  • Description: True effective value measurement multimeter for industrial electricians with VCHEK™
  • Vormgeving: Draagbaar
  • Levering met Batterij Holster, Test lead, Gebruikershandleiding

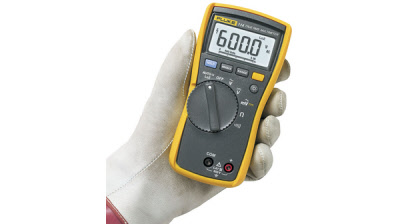

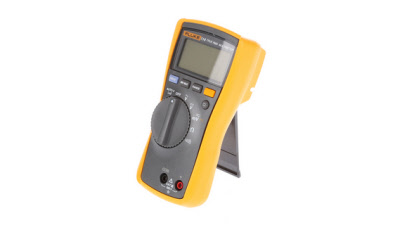

Fluke 114 Digitale multimeter True RMS

Fluke
Fluke114 12112017
0095969344791
kg
    Levertijd:prijs en levertijd op aanvraag | sales@brigatti.nl

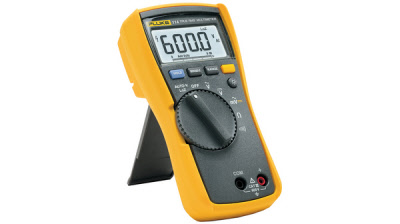

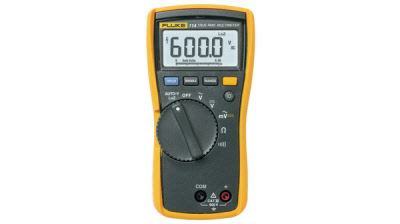

  • Fluke 114 Electrical Multimeter
  • Compact design for ergonomic one-handed operation
  • The Fluke 114 is for electrical troubleshooting and
  • straightforward ‘go/no-go’ in residential/
  • commercial testing. It has all the basic
  • functions plus a special feature to prevent false
  • readings caused by ghost voltage.
  • AutoVolt: automatic ac/dc voltage selection
  • Large white LED backlight to work in poorly lit areas
  • Resistance and continuity
  • Min/Max/Average to record signal fluctuations
  • CAT III 600 V safety rated
  • Meettype TRMS AC
  • Scherm 6000 cijfers
  • Bandwidth VAC 1 kHz
  • Safety to EN61010 CAT III 600 V
  • VAC max. 600 VAC
  • VAC resolution 1000 µV
  • VDC max. 600 VDC
  • VDC resolution 1000 µV
  • Ohm max. 40 MOhm
  • Ohm resolution 0.1 Ohm
  • Meetfunctie Continuity tester, Hold Min./max. value
  • Instrumentfuncties Analoog bargraph, backlight Removable holster
  • Voeding 1 x 6LR61/9V Garantie 3 jaren
  • Afmetingen L x B x H 167 x 84 x 46 mm Gewicht 550 g
  • Description True effective multimeter for electricians (with standard functions) Vormgeving Draagbaar
  • Levering met: Batterij, Holster, Gebruikershandleiding

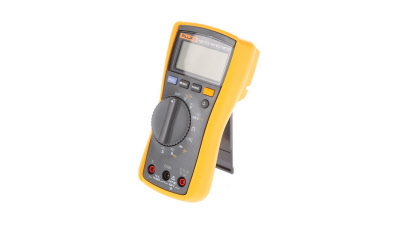

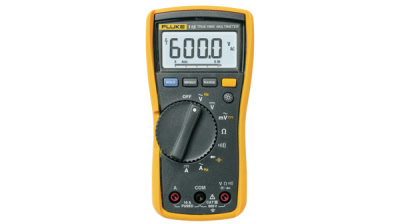

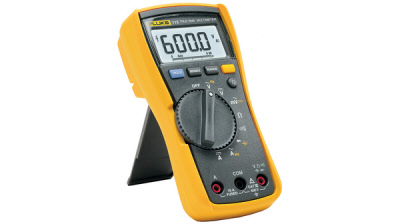

Fluke 115 Digitale multimeter TRMS

Fluke
Fluke115 |12112017
0095969344814
kg
    Levertijd:prijs en levertijd op aanvraag | sales@brigatti.nl

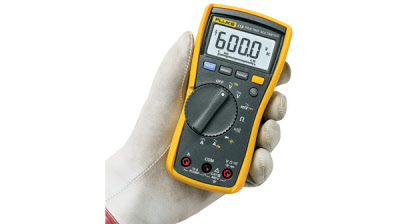

  • Fluke 115 Digital Multimeter
  • Field Service Testing Multimeter
  • The Fluke 115 an everyday multimeter for technicians, the 115 is for electrical and electronic testing in
  • field service, industrial, and applications where
  • more than the basic functions simplify work.
  • Large white LED backlight to work in poorly lit areas
  • Resistance and continuity
  • Frequency and capacitance
  • Maximum Voltage ac/dc 600V
  • 10A ac/dc current measurement (20 A overload for 30-seconds max)
  • Min/Max/Average to record signal fluctuations
  • CAT III 600 V safety rated
  • Meettype TRMS AC
  • Scherm 6000 cijfers
  • Bandwidth VAC 1 kHz
  • Bandwidth AAC 1 kHz
  • Safety to EN61010 CAT III 600 V
  • VAC max. 600 VAC
  • VAC resolution 1000 µV
  • VDC max. 600 VDC
  • VDC resolution 1000 µV
  • ADC maximaal 10 ADC
  • ADC resolution 10000 µA
  • AAC max. 10 AAC
  • AAC resolution 10000 µA
  • Ohm max. 40 MOhm
  • Ohm resolution 0.1 Ohm
  • F max. 10 mF
  • F resolution 1 nF
  • Hz max. 50 kHz
  • Hz resolution 0.01 Hz
  • Meetfunctie Continuity tester, Diode tester, Hold, Min./max. value
  • Instrumentfuncties Analoog bargraph, backlight, Removable holster
  • Voeding 1 x 6LR61/9V
  • Garantie 3 jaren
  • Afmetingen L x B x H 167 x 84 x 46 mm
  • Gewicht 550 g
  • Description True effective universal multimeter (for field use)
  • Vormgeving Draagbaar
  • Levering met Batterij, Holster, Test lead, Gebruikershandleiding

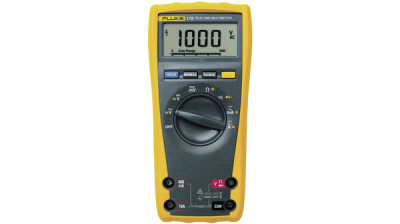

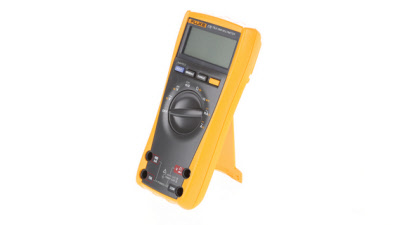

Fluke 175 Digitale multimeter TRMS

Fluke
Fluke175 | 12112017
0095969095921
kg
    Levertijd:prijs en levertijd op aanvraag | sales@brigatti.nl

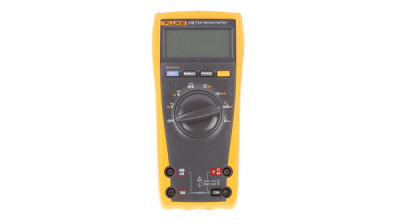

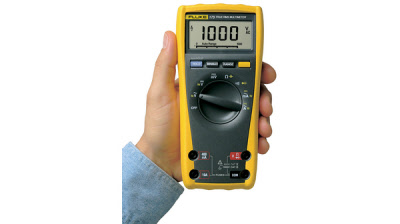

  • Fluke 175 Digital Multimeter
  • Versatile meters for field service or bench repair
  • The Fluke 175 multimeter has the features needed
  • to find most electrical, electro-mechanical
  • and heating and ventilation problems.
  • It is simple to use and has
  • significant improvements over Fluke’s
  • original 70 Series like True-RMS, more
  • measurement functions, conformance to
  • the latest safety standards, and a much
  • larger display that’s easier to view.
  • Manual and automatic ranging
  • Display Hold and Auto Hold
  • Frequency and capacitance measurements
  • Resistance, continuity and diode measurements
  • Min-max-average recording
  • Closed case calibration through front panel
  • Ergonomic case with integrated protective holster
  • CAT III 1000 V/CAT IV 600 V??
  • Meettype TRMS
  • AC Scherm 6000 cijfers
  • Bandwidth VAC 1 kHz
  • Bandwidth AAC 1 kHz
  • Safety to EN61010 CAT III 1000 V, CAT IV 600 V
  • VAC max. 1000 VAC VAC resolution 100 µV
  • VDC max. 1000 VDC
  • VDC resolution 100 µV
  • ADC maximaal 10 ADC
  • ADC resolution 10 µA
  • AAC max. 10 AAC
  • AAC resolution 10 µA
  • Ohm max. 50 MOhm
  • Ohm resolution 0.1 Ohm
  • F max. 10 mF
  • F resolution 1 nF
  • Hz max. 100 kHz
  • Hz resolution 0.01 Hz
  • Meetfunctie Continuity tester, Diode tester, Hold, Min./max. value
  • Instrumentfuncties, Analoog bargraph, Integrated holster
  • Voeding 1 x 6LR61/9V
  • Afmetingen L x B x H 185 x 90 x 43 mm
  • Gewicht 420 g
  • Description Digital multimeter
  • Vormgeving Draagbaar
  • Levering met Batterij, Test lead, Gebruikershandleiding
