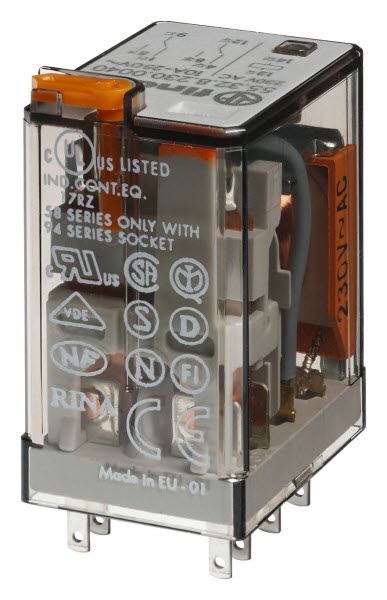

2 x wissel 55-serie Miniatuur vermogenrelais

6Vdc Industrierelais print 2xwissel 10A | 553290060040

Finder
***V4 | 55.32.9.006.0040 | REL 553296 | 14102011
kg
    Levertijd:voorraad artikel 1-2 werkdagen
Bestel
  • Extremely compact, mono-stable power relay with AC or DC coils according to preference
  • Suitable for printed boards or plug-in base installation on 35 mm DIN rails
  • Various time, indicator and EMV modules, which are simply plugged into the lower area of the base, are available for selection for plug-in bases



  • Type: PCB Relais 2xwissel 55.32.9.006.0040
  • Contacts 2 change-over (CO)
  • Ucoil 6 VDC
  • Rcoil 40 Ohm
  • Pcoil -
  • Contact materiaal AgNi
  • Testspanning 3.6
  • Protection rating IP 40
  • Schakelspanning 250 VAC
  • Switching current 10 A 250 VAC
  • Switchingcapaciteit 2500 VA
  • Afmetingen L x B x H 27.5 x 21 x 33.5 mm
  • Temperatuurbereik -40...+85 °C





12Vdc Industrierelais print 2xwissel 10A | 551290120040

Finder
***V1 | 55.12.9.012.0040 | grijze bak | REL 5512912 | 14102011
8012823247786
kg
    Levertijd:voorraad artikel 1-2 werkdagen
Bestel
  • Extremely compact, mono-stable power relay with AC or DC coils according to preference
  • Suitable for printed boards or plug-in base installation on 35 mm DIN rails
  • Various time, indicator and EMV modules, which are simply plugged into the lower area of the base, are available for selection for plug-in bases
  • Type: PCB Relais 2xwissel 55.12.9.012.0040
  • Contacts 2 change-over (CO)
  • Ucoil 12 VDC
  • Rcoil 140 Ohm
  • Pcoil 1 W
  • Contact materiaal AgNi
  • Testspanning 3.6
  • Protection rating IP 40
  • Schakelspanning 250 VAC
  • Switching current 10 A 250 VAC
  • Switchingcapaciteit 2500 VA
  • Afmetingen L x B x H 27.5 x 21 x 33.5 mm
  • Temperatuurbereik -40...+85 °C






230Vac Industrierelais print 2xwissel 10A | 553282300040

Finder
***V1 | 55.32.8.230.0040 | REL 55328230 | 14102011
8012823079974
kg
    Levertijd:voorraad artikel 1-2 werkdagen
Bestel
  • Extremely compact, mono-stable power relay with AC or DC coils according to preference
  • Suitable for printed boards or plug-in base installation on 35 mm DIN rails
  • Various time, indicator and EMV modules, which are simply plugged into the lower area of the base, are available for selection for plug-in bases



  • Type: PCB Relais 2xwissel 55.32.8.230.0040
  • Contacts 2 change-over (CO)
  • Ucoil 230 Vac
  • Rcoil 17000 Ohm
  • Pcoil 1.5 W
  • Contact materiaal AgNi
  • Testspanning 3.6
  • Protection rating IP 40
  • Schakelspanning 250 VAC
  • Switching current 10 A 250 VAC
  • Switchingcapaciteit 2500 VA
  • Afmetingen L x B x H 27.5 x 21 x 33.5 mm
  • Temperatuurbereik -40...+85 °C





12Vdc Industrierelais print 2xwissel 10A | 553290120040

Finder
55.32.9.012.0040 | REL 5532912 | 14102011
8012823081106
kg
    Levertijd:geen voorraad artikel levertijd 2-4 werkdagen
Bestel
  • Extremely compact, mono-stable power relay with AC or DC coils according to preference
  • Suitable for printed boards or plug-in base installation on 35 mm DIN rails
  • Various time, indicator and EMV modules, which are simply plugged into the lower area of the base, are available for selection for plug-in bases



  • Type: PCB Relais 2xwissel 55.32.9.012.0040
  • Contacts 2 change-over (CO)
  • Ucoil 12 VDC
  • Rcoil 140 Ohm
  • Pcoil 1 W
  • Contact materiaal AgNi
  • Testspanning 3.6
  • Protection rating IP 40
  • Schakelspanning 250 VAC
  • Switching current 10 A 250 VAC
  • Switchingcapaciteit 2500 VA
  • Afmetingen L x B x H 27.5 x 21 x 33.5 mm
  • Temperatuurbereik -40...+85 °C



24Vdc Industrierelais print 2xwissel 10A | 553290240040

Finder
55.32.9.024.0040 | REL 5532924 |14102011
8012823079967
kg
    Levertijd:geen voorraad artikel levertijd 2-4 werkdagen
Bestel
  • Extremely compact, mono-stable power relay with AC or DC coils according to preference
  • Suitable for printed boards or plug-in base installation on 35 mm DIN rails
  • Various time, indicator and EMV modules, which are simply plugged into the lower area of the base, are available for selection for plug-in bases



  • Type: PCB Relais 2xwissel 55.32.9.024.0040
  • Contacts 2 change-over (CO)
  • Ucoil 24 VDC
  • Rcoil 600 Ohm
  • Pcoil 1 W
  • Contact materiaal AgNi
  • Testspanning 3.6
  • Protection rating IP 40
  • Schakelspanning 250 VAC
  • Switching current 10 A 250 VAC
  • Switchingcapaciteit 2500 VA
  • Afmetingen L x B x H 27.5 x 21 x 33.5 mm
  • Temperatuurbereik -40...+85 °C
